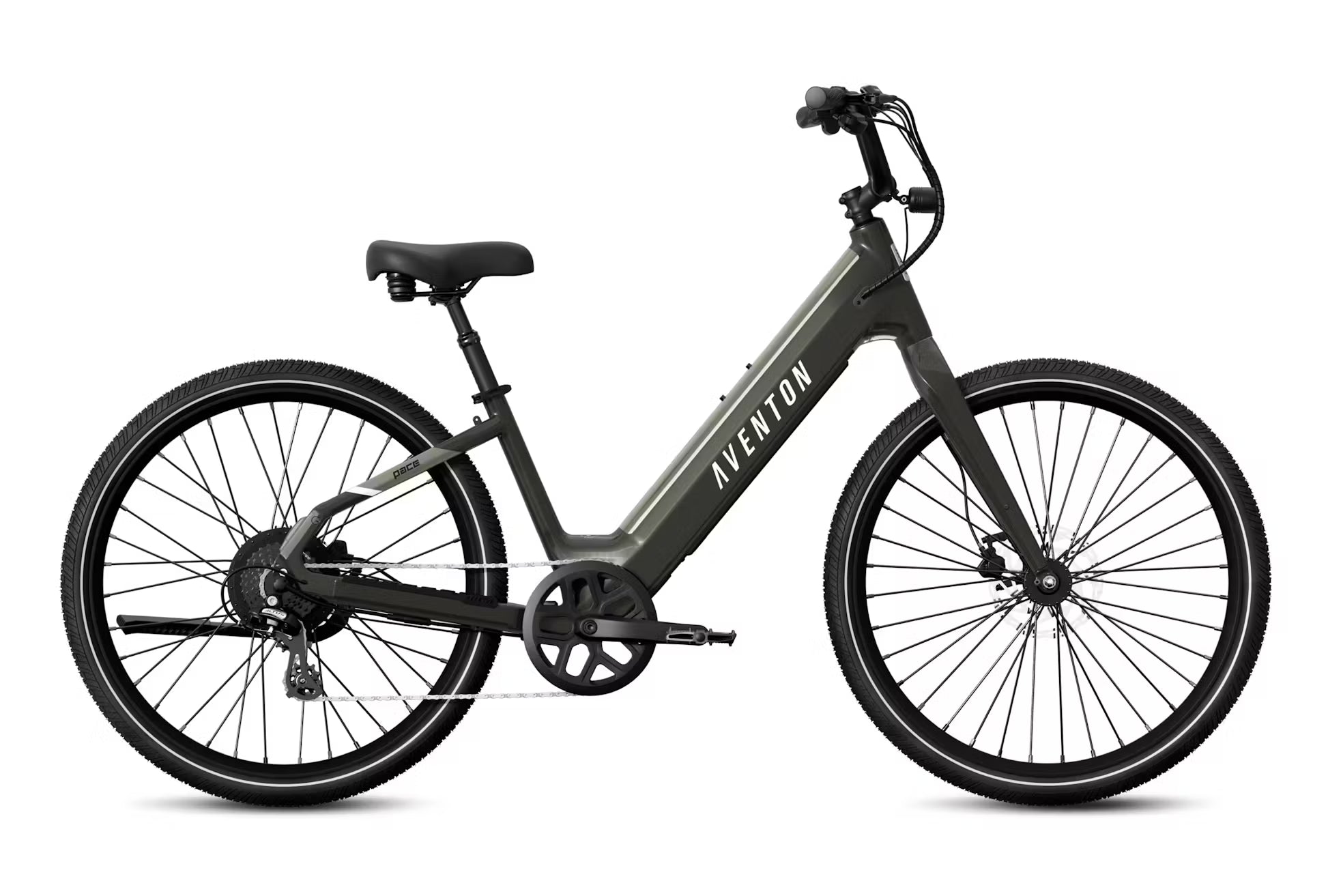

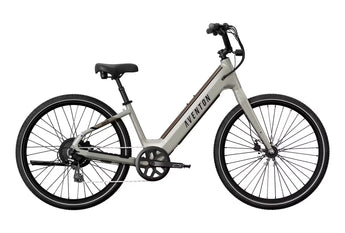

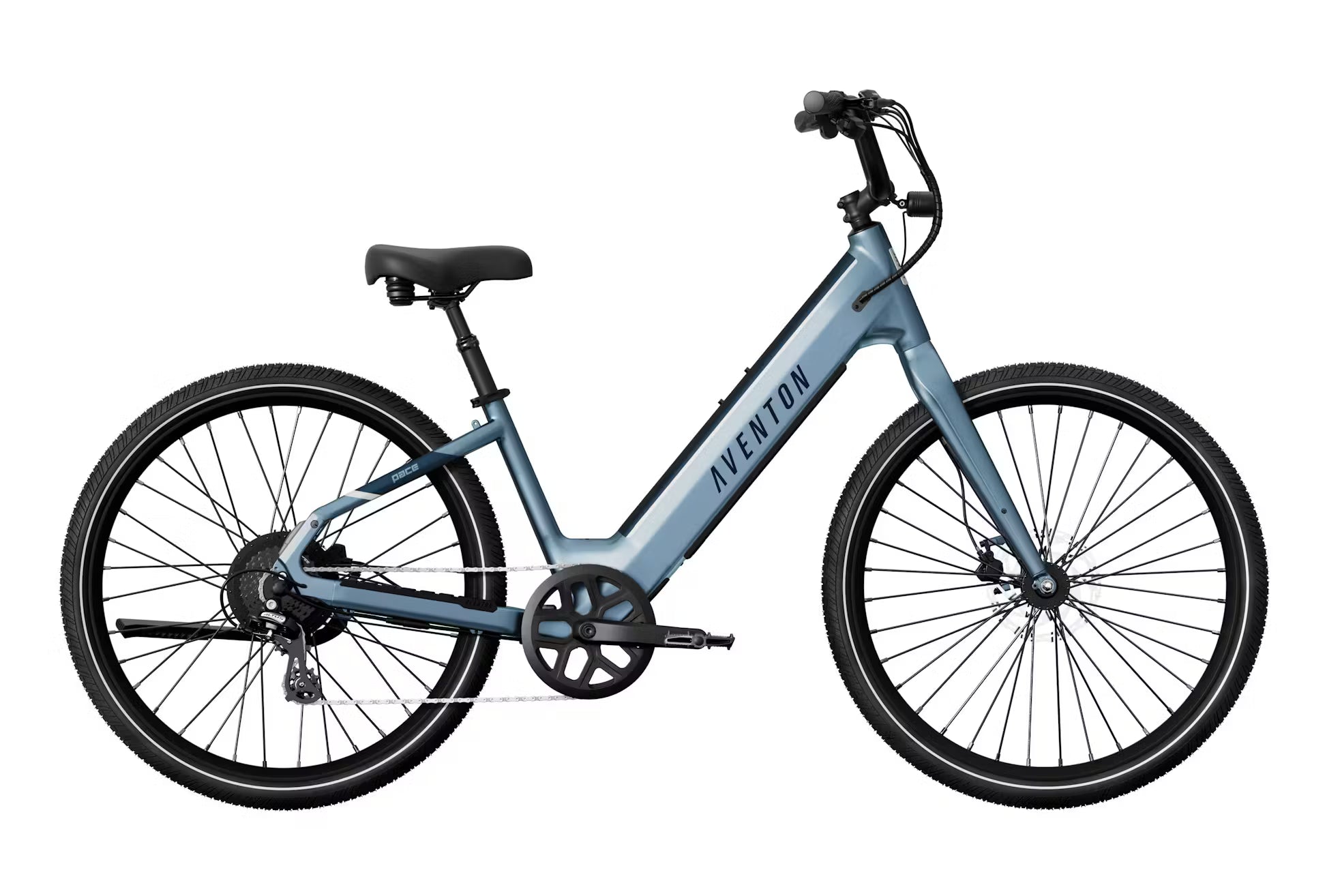

Aventon Pace 4 Step-Through Electric Bike

Aventon Pace 4 Step-Through

Cruise through your city streets or scenic bike paths with the Pace 4 Step-Through Ebike, the latest evolution in comfort and efficiency from Aventon. Engineered for easy access and upright riding posture, the step-through frame pairs beautifully with advanced components and safety certifications for a smooth, confident ride. With an impressive range of up to 70 miles, integrated lighting, and a UL-certified battery system, this ebike is ideal for daily commuters, weekend riders, and anyone who wants to rediscover the joy of cycling — powered by a responsive torque sensor and backed by a whisper-quiet 500W motor.

Whether you're gliding along the beach or commuting through the city, the Pace 4 delivers exceptional ride comfort, style, and peace of mind.

🔧 Specifications at a Glance

General:

• Model: Aventon Pace 4 Step-Through Ebike
• Weight: 58.2 lbs
• Max Payload Capacity: 300 lbs
• Ideal Rider Height:
• Regular: 4'11" – 5'7"
• Large: 5'7" – 6'1"
• Use Case: Cruising / Everyday Riding
• Water Resistance:
• Bike: IPX5
• Components: IPX6

Safety & Compliance:

• Bike Safety Certification: UL 2849
• Battery Certification: UL 2271
• Class: Ships as Class 2 (Throttle + Pedal Assist), convertible to Class 3

Performance:

• Range: Up to 70 miles (PAS 1, flat terrain, 160 lb rider)
• Top Speed: 20 MPH (Class 2), 28 MPH (Class 3 mode enabled if allowed)
• Motor: 36V, 500W rear hub motor
• Torque: 60Nm
• Battery: 36V, 20Ah, 733Wh removable lithium-ion (LG 21700 cells)
• Charger: 42V / 4A, full charge in ~5 hours
• Throttle: Left-hand thumb throttle (removable)
• Sensor: Double-sided bottom bracket torque sensor

Drivetrain:

• Shifter: Shimano 8-Speed Trigger
• Rear Derailleur: Shimano Altus 8-Speed
• Cassette: Shimano 12-32T
• Chainring: 48T
• Crankset: 3-piece, 170mm arms
• Chain: 7/8-speed, 122L

Brakes:

• Type: Tektro Hydraulic Disc Brakes with E-Cutoff
• Rotors: 180mm (Front & Rear, 6-bolt)

Wheels & Tires:

• Wheel Size: 27.5", 36-hole
• Tires: 27.5" x 2.1"
• Valve Type: Schrader

Frameset:

• Frame Material: 6061 Aluminum with Gravity Cast Front Triangle
• Fork: Rigid Aluminum
• Spacing:
• Rear: 142mm
• Front: 100mm

Cockpit & Comfort:

• Handlebars: BMX Style Aluminum, 31.8mm clamp, 720mm width
• Stem: 31.8mm x 50mm, +15° rise
• Saddle: Aventon Comfort Saddle
• Seatpost: Aventon Suspension, Ø30.9mm, 350mm length, 50mm travel
• Grips: Ergonomic comfort lock-on grips
• Pedals: 9/16" composite platform
• Headset: Sealed bearing

Lighting & Accessories:

• Lights: Integrated front and rear
• Kickstand: Included (rear mounted)
• Display: Aventon BC147

Why Choose the Pace 4 Step-Through?

• Easy mounting and dismounting for all riders
• Long-range battery with fast charging
• Class 2 to Class 3 versatility
• Fully integrated and safety-certified components
• Comfort-focused geometry with premium suspension seatpost
